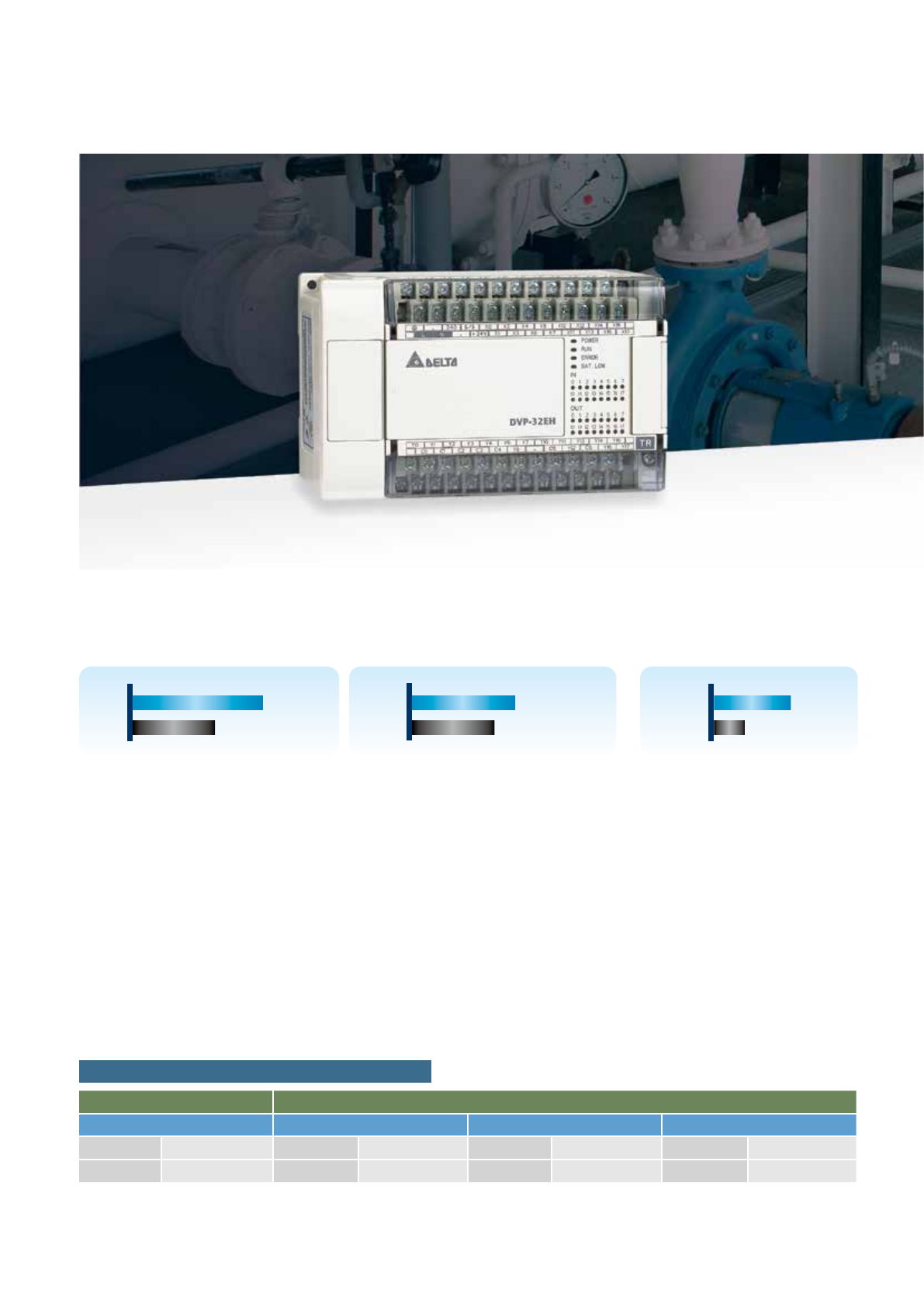

High Performance PLC

DVP-

EH3

The new generation DVP-EH3 PLC is the high-end model of the Delta DVP-E series.

It provides larger program capacity and data registers for more demanding and complex applications.

Excellent Motion Control

►

High-speed pulse output: 4 axes of 200kHz pulse output

(DVP40/48/64/80EH00T3)

►

Supports max. 4 hardware 200kHz high-speed counters

►

Increases many motion control instructions to meet applications that

require high-speed and high-precision positioning control such as

labeling machines, packaging machines and printing machines

►

Offers linear/arc interpolation motion control

►

Provides up to 16 external interrupt pointers

Complete Program Protection

►

Auto backup function to prevent the loss of programs and data

even when the battery runs out

►

Second copy function provides a backup for extra insurance in the

event that one set of programs and data are damaged

►

Up to 4-level password protection protects your source programs

and intellectual property

Program capacity

EH3 EH3

EH2

Data register

Execution speed

EH3

4X12,000 words30k steps

EH2 1X10,000 words16k steps

Outstanding Operation Performance

32-bit CPU + ASIC dual processors support oating point

operations.

The max. execution speed of basic instructions is able to

reach 0.24μs.

Flexible Function Extension Modules & Cards

Multiple selections of extension modules and function cards

provide analog I/O, temperature measurement, additional

single-axis motion control, high-speed counting, 3rd serial

communication port and Ethernet communication card are

available.

PLC Link

PLC Link allows users to link up a max. of 32 units to the network

without having to install extra communication extension modules.

Standard Hardware high-speed counter

1-phase 1 input 1-phase 1 input 1-phase 2 inputs 2-phase 2 inputs

Counters

Bandwidth

Counters

Bandwidth

Counters

Bandwidth

Counters

Bandwidth

10kHz

200kHz

2/2

200kHz/20kHz

2/2

200kHz/20kHz

*The specications in this table are applicable only for DVP40EH00R3/DVP40EH00T3.

For input/output specications of other models, refer to the I/O specications table in page 20.

Built-in 4 Hardware High-Speed Counters
