Built-in functions

Right side extension

Motion control

Built-in Ethernet, RS-232,

RS-485 communication ports

Built-in CANopen and

encoder interface

Connects to DVP series extension

modules such as digital, analog

and temperature modules

• Supports:

• Compatible with

Network Type Motion Controller

DVP-

■ Up to 16 axes can be controlled through high-speed

CANopen communication, offering system stability and

easier wiring

■ Built-in E-Cam, ﬂying shear and rotary cut commands

Left side extension

Accessories

CANopen Motion Controller

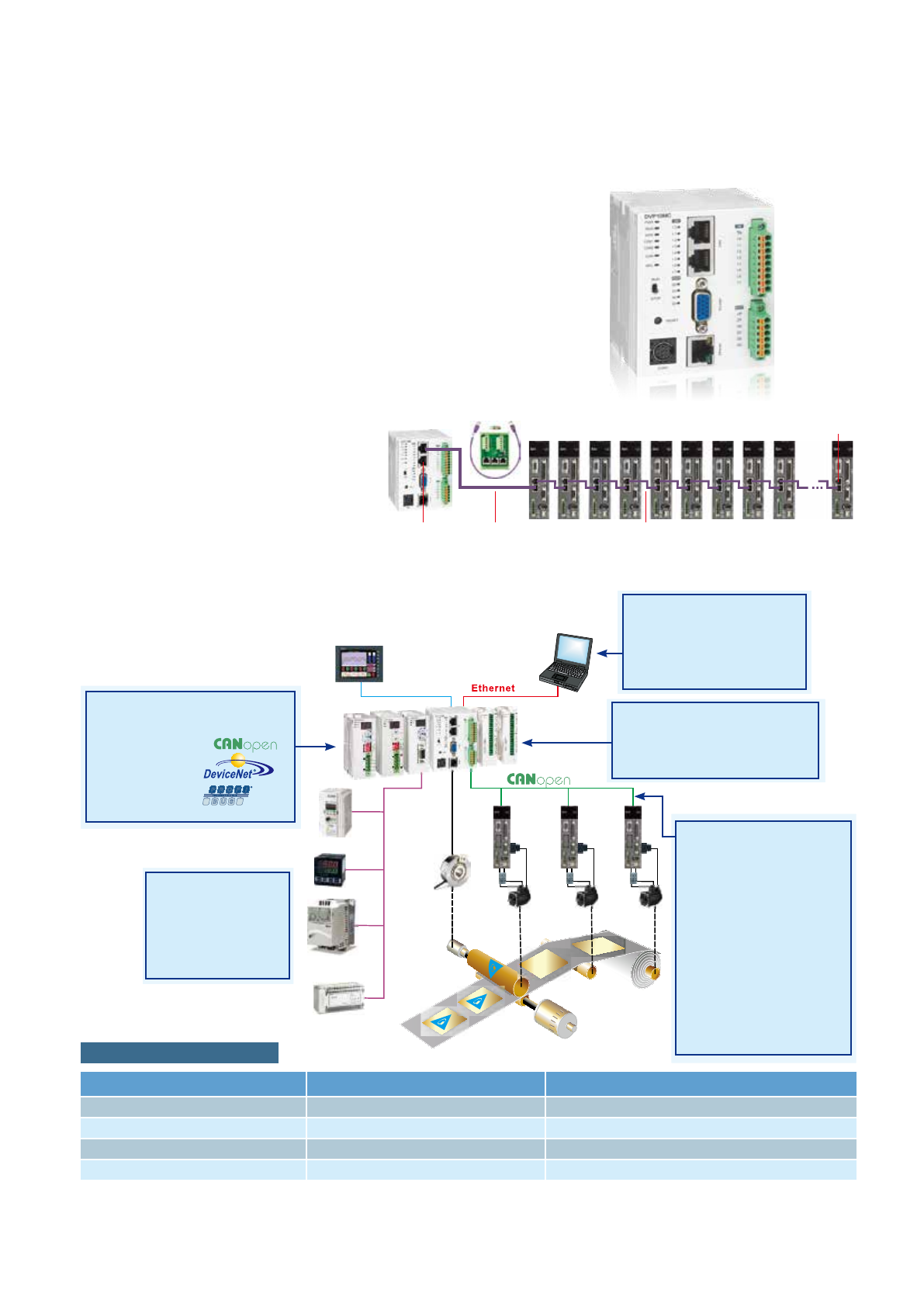

DVP-MC Series Control Structure

DVP10MC11T

TAP-TR01

TAP-CB10 TAP-CB03

TAP-TR01

Model name Speciﬁcations Features

TAP- CB03/CB05/CB10/CB20

0.3m/0.5m/1m/2m CANopen sub-line RJ45 connector for both ends

TAP-CB01/CB02

CANopen main-line/sub-line

Used for longer CANopen communication distance

TAP-CN03

Distribution Box Built-in terminal resistor 120 ohm

TAP-TR01

Terminal Resistor

Terminal Resistor 120 Ohm

CANopen Accessories

►

Built-in 12 I/O points

(8 sets of high-speed inputs,

4 sets of high-speed outputs)

►

Max. 240 inputs and 240 outputs

►

Built-in motion control commands

for easier operation

►

Synchronously controls 4 axes in 2ms

and 8 axes in 4ms

►

High precision control with interpolation function

MODBUS

• Connects to DVP-S series

• Supports:

Provides standard

CANopen

communication cables,

terminal resistor

and distribution box

» CANopen master

» DeviceNet master

» PROFIBUS slave

» load cell modules

speed, position, torque control.

high speed position capture

and error compensation

electronic gear, E-Cam

(2048 points), ying shear

and rotary cut applications

G-code,

3 axes arc/helical interpolation,

8 axes linear interpolation
