General Purpose Motion

Controller Professional Motion Controllers

Pulse-train Motion Controller

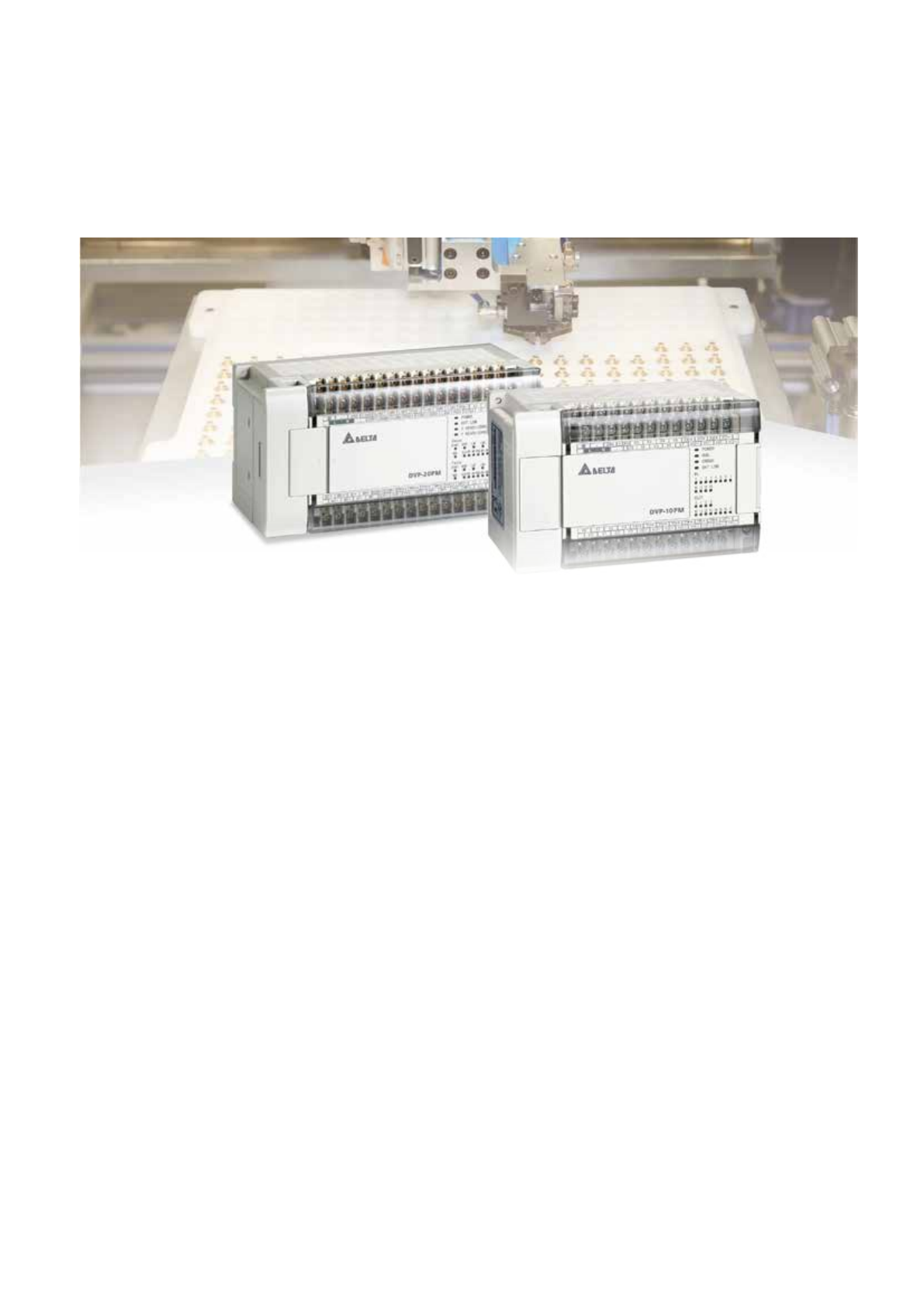

DVP10PM00M DVP20PM00D/M/DT

■ 2/3/4/5/6-axis linear interpolation motion

control

■

Highly accurate PWM 200kHz output,

resolution 0.3%

■

8 groups of high-speed captures (mark

correction, frequency measurement),

comparative output, Mark/Mask function (for

bag making)

►

Built-in 24 I/O points. Max. 256 I/O points

►

Program capacity: 64k steps/Data register: 10k words

►

Higher execution speed compared to the competition:

LD: 0.13μs, MOV: 2.1μs

►

Built-in RS-232 and RS-485 ports

►

Supports standard MODBUS ASCII/RTU protocol

■

Compatible with G-code/M-code

■

3-axis linear/arc/helical interpolation

■

Not only a motion controller but also an

extension module

►

Functions as an extension module with DVP -PM and DVP-

EH2 series

►

PM Series (as an extension module) requires only Start/Stop

command from the main PLC to function as a stand-alone

motion controller without the limitation of PLC cycle time

■

Supports electronic cam (2048 points)

function for ﬂying shear and rotary cut

applications

►

Built-in 16 I/O points. Max. 512 I/O points

►

Program capacity: 64k steps/Data register: 10k words

►

Built-in RS-232 and RS-485 ports

►

Supports standard MODBUS/ASCII/RTU protocol

DVP-

■

Motion Control Functions

►

High-speed pulse output: built-in 6 sets of A/B phase

pulse outputs

►

2 sets of 200 kHz output, 4 sets of 1 MHz output

►

6 sets of high-speed counters and hardware digital lter

for counting

►

Supports MPG inputs

►

Single-axis motion control function

(supports 1st speed, 2nd speed, MPG function)

►

Electronic gear function

■

Motion Control Functions

►

Built-in A/B phase differential signal outputs:2 sets

(DVP20PM00D)/3 sets (DVP20PM00M). Max. differential output

frequency is 500kHz

►

Supports MPG inputs

►

Single-axis motion control function

(supports 1st speed, 2nd speed, MPG function)

►

Electronic gear function
